Gigabyte X870 AORUS Elite WiFi 7 | AM5 ATX Motherboard, DDR5

Description

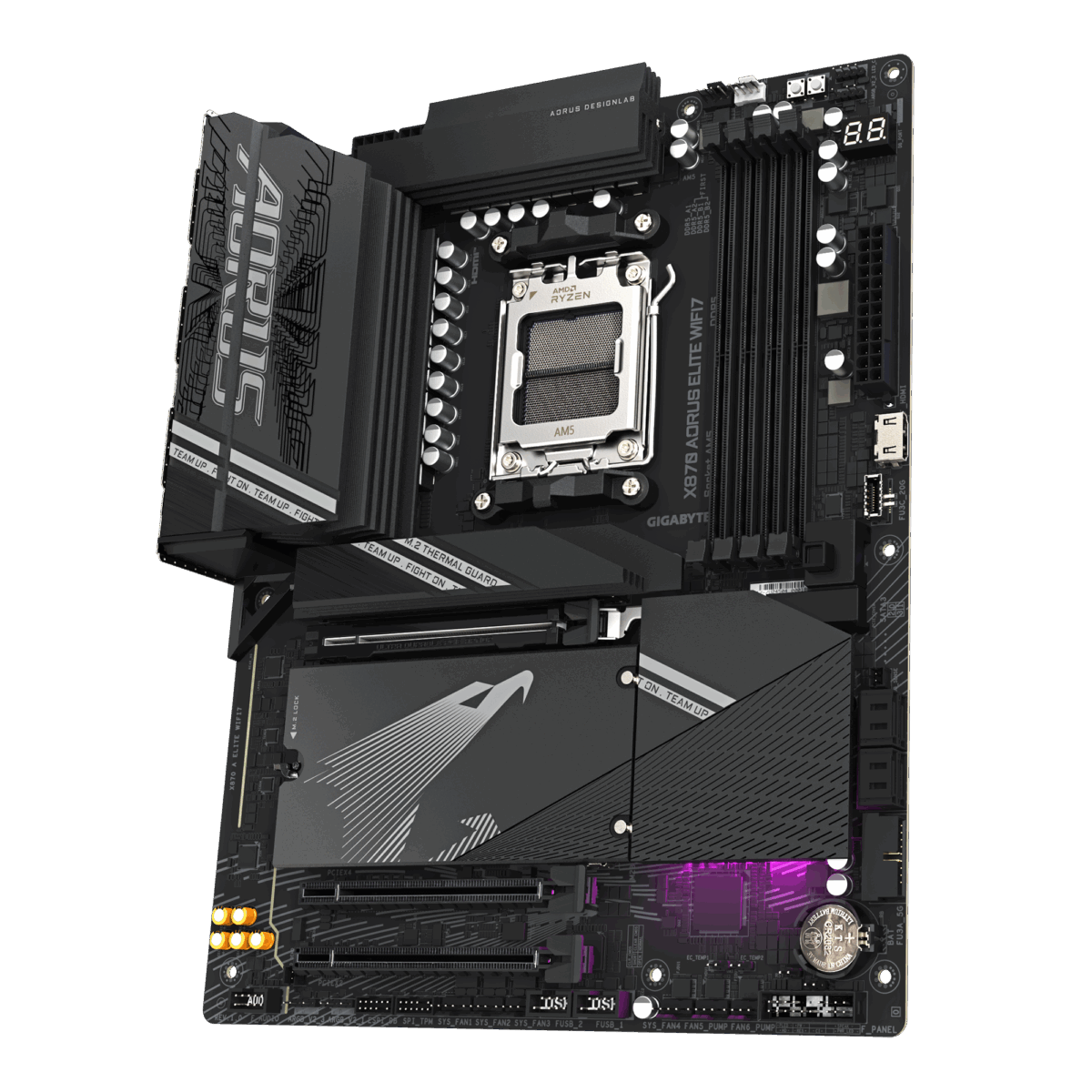

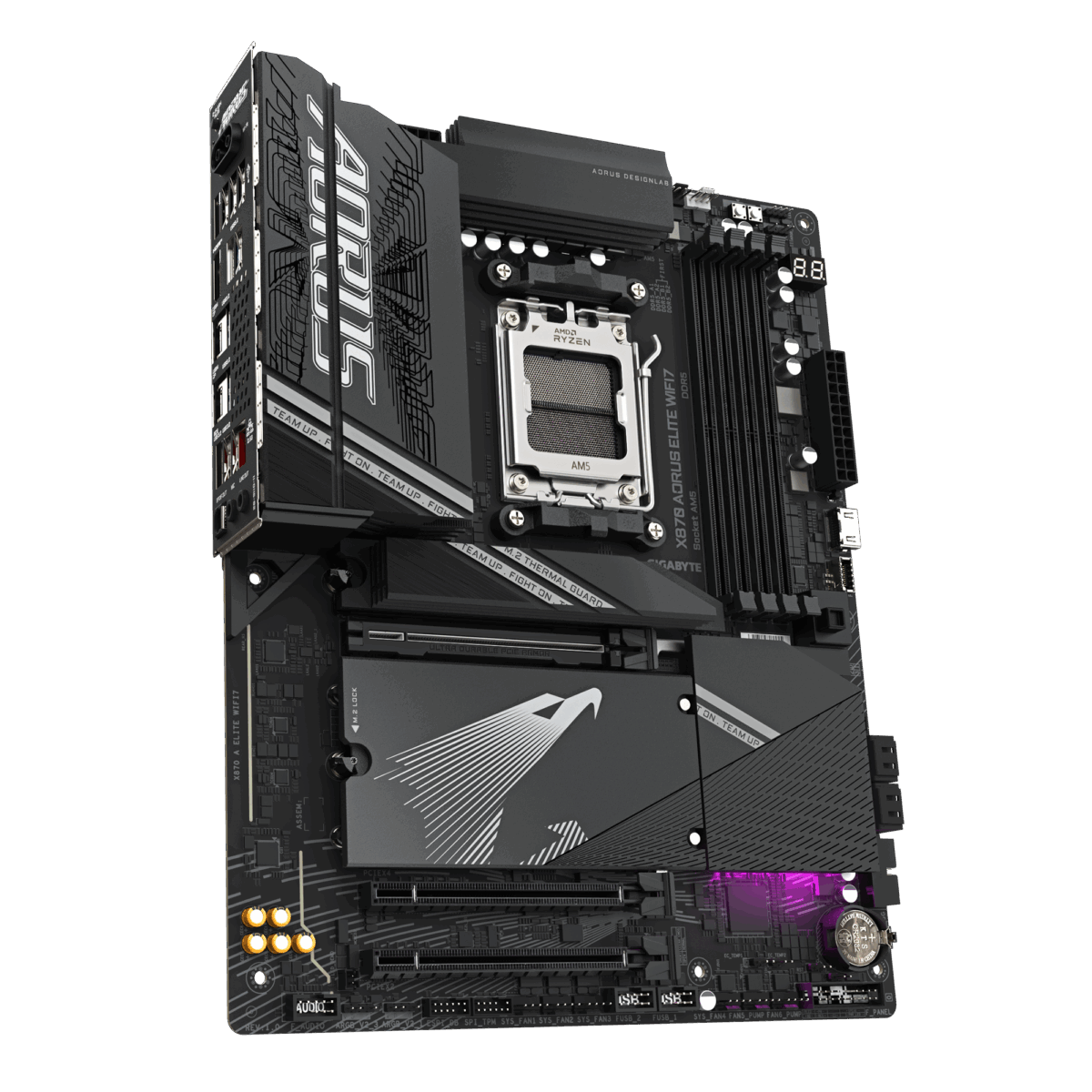

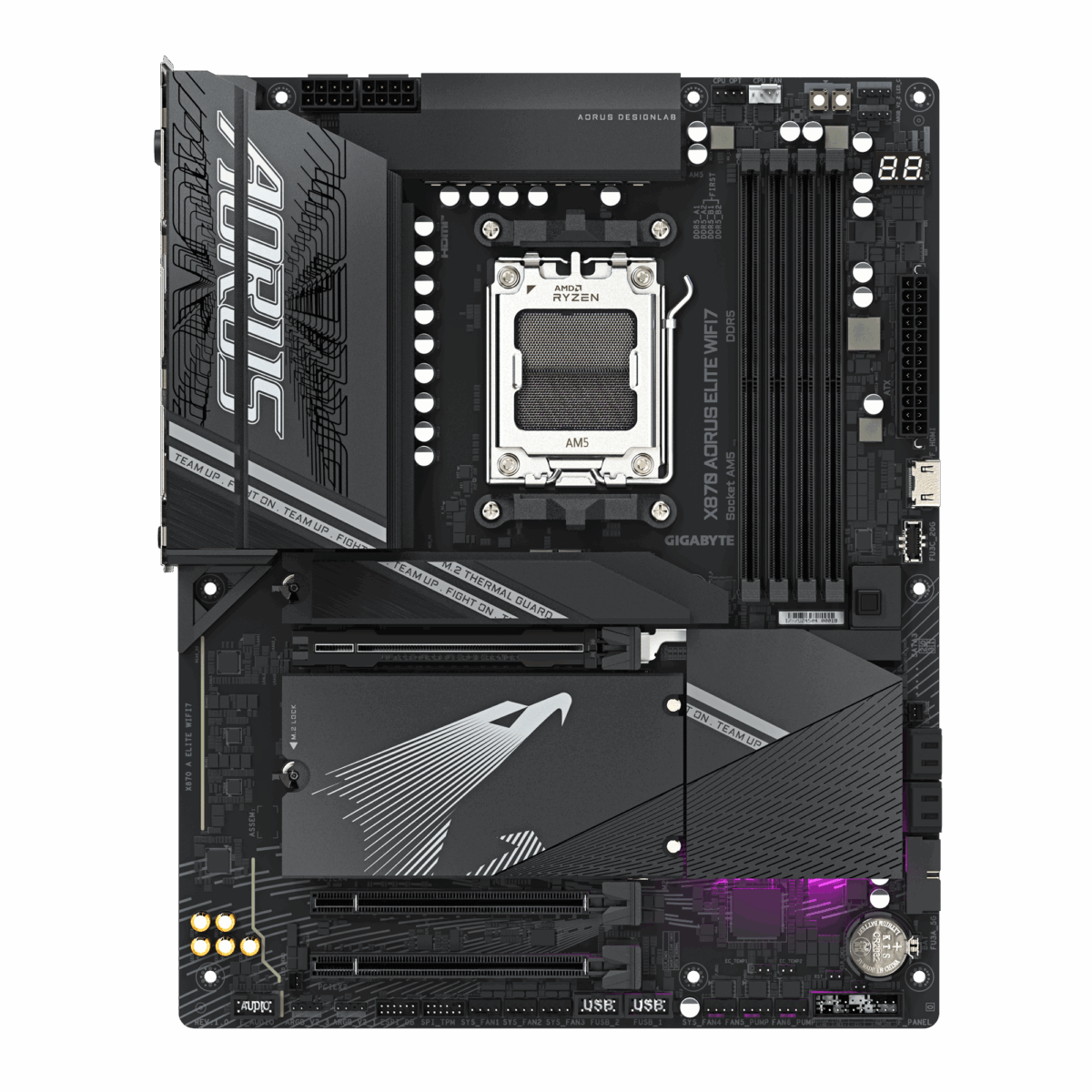

Gigabyte X870 AORUS Elite WiFi 7 | AM5 ATX Motherboard, DDR5

Unbridled Performance and Stability: To handle the extreme demands of modern multi-core AMD Ryzen processors, the X870 AORUS Elite utilizes a massive digital twin 16+2+2 phase VRM solution. This ensures that even flagship CPUs receive a steady, unthrottled supply of power under heavy rendering or extreme gaming loads. Furthermore, it supports AMD EXPO profiles, allowing you to easily overclock your DDR5 memory modules up to staggering speeds (8000+ MT/s) with just a single click in the BIOS. Next-Generation Storage and PCIe 5.0: The motherboard is built to support the fastest components on the market today and tomorrow. It features a reinforced PCIe 5.0 x16 slot for next-gen graphics cards, boasting 10x the strength of standard slots to support massively heavy GPUs without sagging. For storage, it includes an incredible four M.2 slots, three of which are PCIe 5.0 x4 capable. This allows you to install multiple lightning-fast Gen5 NVMe SSDs to virtually eliminate game load times and drastically speed up large file transfers. Bleeding-Edge Connectivity and EZ-DIY: Gigabyte has fully embraced the future of connectivity with the X870 chipset. The rear I/O is highlighted by two dual USB4 Type-C ports, delivering a massive 40Gbps of bandwidth for high-speed external storage or high-resolution display outputs (DP-Alt mode). Networking is handled by a 2.5GbE wired LAN port alongside ultra-fast Wi-Fi 7 and Bluetooth 5.4. Building the PC is also easier than ever thanks to EZ-Latch Plus and EZ-Latch Click technologies, which allow you to install and remove your graphics card and M.2 SSD heatsinks completely tool-free-no tiny screwdrivers required.

Key Features

• AM5 Socket: Ready for AMD Ryzen 7000, 8000, and 9000 Series desktop processors.
• 16+2+2 Phase VRM: A heavy-duty digital power design ensures system stability under heavy loads.
• PCIe 5.0 & Gen5 M.2: Features a reinforced PCIe 5.0 graphics slot and three PCIe 5.0 x4 M.2 slots for ultra-fast storage.
• Dual USB4 Ports: Twin 40Gbps Type-C ports provide massive bandwidth and DisplayPort output capabilities.
• Wi-Fi 7 & 2.5GbE: Next-generation wireless speeds and high-bandwidth wired networking.
• EZ-Latch Design: Completely screwless installation for M.2 drives, M.2 heatsinks, and quick-release for the GPU.
• Sensor Panel Link: An onboard video port makes it incredibly easy to connect a secondary screen inside your PC case for system monitoring.

Specifications of Gigabyte X870 AORUS Elite WiFi 7 | AM5 ATX Motherboard, DDR5

Feature	Specification
Model	Gigabyte X870 AORUS Elite WiFi 7
Form Factor	ATX
CPU Socket	AMD AM5
Chipset	AMD X870
Memory Support	4x DDR5 DIMM Slots (Up to 256GB total), AMD EXPO
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (runs at x4), 1x PCIe 3.0 x16 (runs at x2)
Storage Interfaces	3x M.2 (PCIe 5.0 x4), 1x M.2 (PCIe 4.0 x4), 2x SATA 6Gb/s

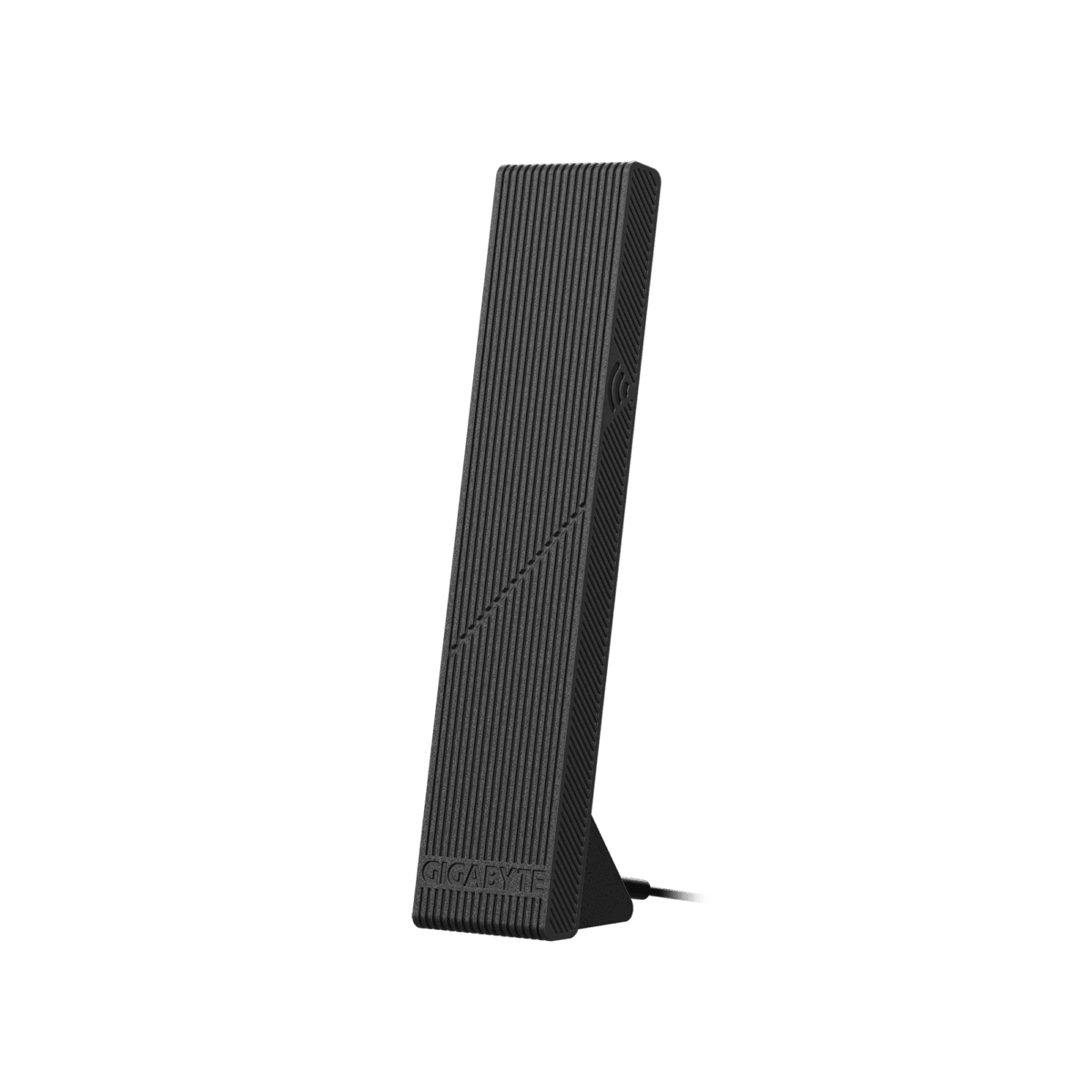

Networking	Wi-Fi 7 (802.11be), Bluetooth 5.4, Realtek 2.5GbE LAN

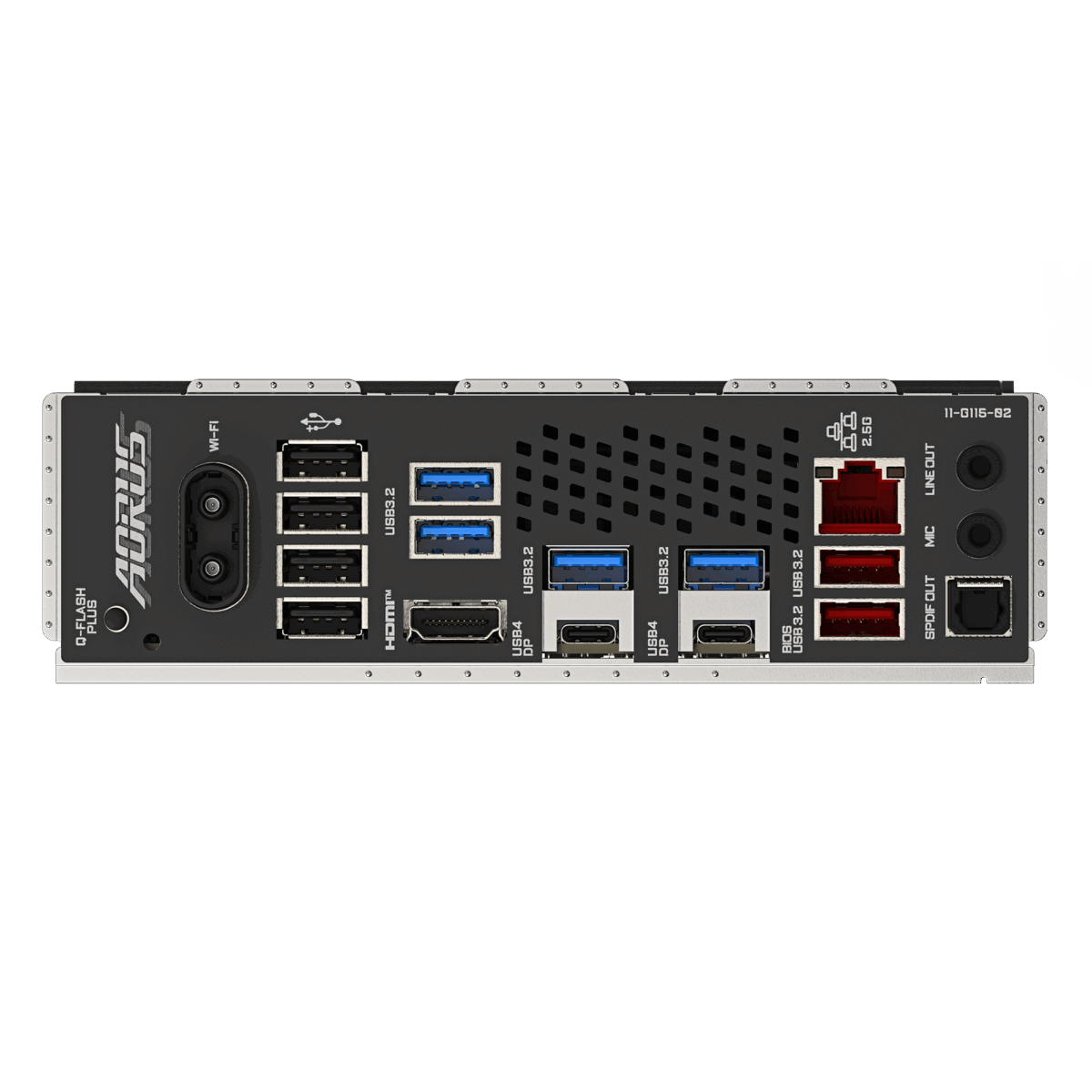

Rear USB Ports	2x USB4 Type-C, multiple USB 3.2 Gen 2 and Gen 1 Type-A ports
Audio	Realtek ALC1220 HD Audio Codec

Who It's For

• High-End Gamers: The inclusion of PCIe 5.0 and Wi-Fi 7 makes this board a future-proof investment that won't bottleneck next-generation graphics cards or internet speeds.
• Content Creators: The massive storage potential of three Gen5 M.2 slots and the ultra-fast 40Gbps USB4 ports make transferring and editing massive 4K/8K video files a breeze.
• First-Time Builders: The EZ-Latch tool-less designs for the M.2 drives and the GPU release button take the frustration out of building and upgrading your PC.

Frequently Asked Questions

1. If I use all the Gen5 M.2 slots, will my graphics card slow down? Yes. AMD Ryzen processors have a finite number of PCIe lanes. If you populate the second or third Gen5 M.2 slot (M2B_CPU or M2C_CPU), your primary PCIe 5.0 x16 graphics card slot will drop down to x8 speed. However, a PCIe 5.0 x8 connection still provides incredible bandwidth (equivalent to PCIe 4.0 x16), so you will not see a noticeable drop in gaming performance, even with a flagship GPU.
2. Can I use DDR4 memory with this motherboard? No. The AM5 socket and X870 chipset are strictly designed for DDR5 memory. The physical slots will not accept older DDR4 RAM sticks.
3. What is the "Sensor Panel Link" feature? The Sensor Panel Link is an internal HDMI port located directly on the motherboard (rather than on the rear I/O panel). It allows you to easily connect a small LCD screen inside your PC case to display system temperatures or custom graphics without having to route an ugly cable out the back of your chassis to the graphics card.
