Deepcool AN600 Low Profile CPU Coolers
SKU: 77912
Out of Stock
| Specification | Value |
|---|---|
| Product Dimensions (L×W×H) | 122 × 120 × 67 mm |
| Heatsink Dimensions (L×W×H) | 121 × 120 × 52 mm |
| Net Weight | 628 g |
| Heat-pipes | Ø6 mm × 6 pcs |
| Fan Dimensions (L×W×H) | 120 × 120 × 15 mm |
| Fan Speed (PWM) | 500 – 1,850 RPM ±10% |
| Fan Airflow | 61.56 CFM |
| Fan Air Pressure | 1.97 mmAq |
| Fan Noise | ≤ 24.4 dB(A) |
| Supported CPU Sockets | Intel: LGA1851/1700/1200/1151/1150/1155; AMD: AM5/AM4 |
-
Ultra-Low Profile Top-Flow Design – With a total height of only 67 mm, the AN600 is ideal for compact or SFF (small form factor) builds where clearance above the CPU is limited.
-
Dual Functionality: CPU + RAM/VRM Cooling – Its 120 mm fan and overhanging design allow airflow not just to the CPU heatsink but also downwards onto RAM modules (up to 40 mm tall) and VRMs, improving overall system cooling.
-

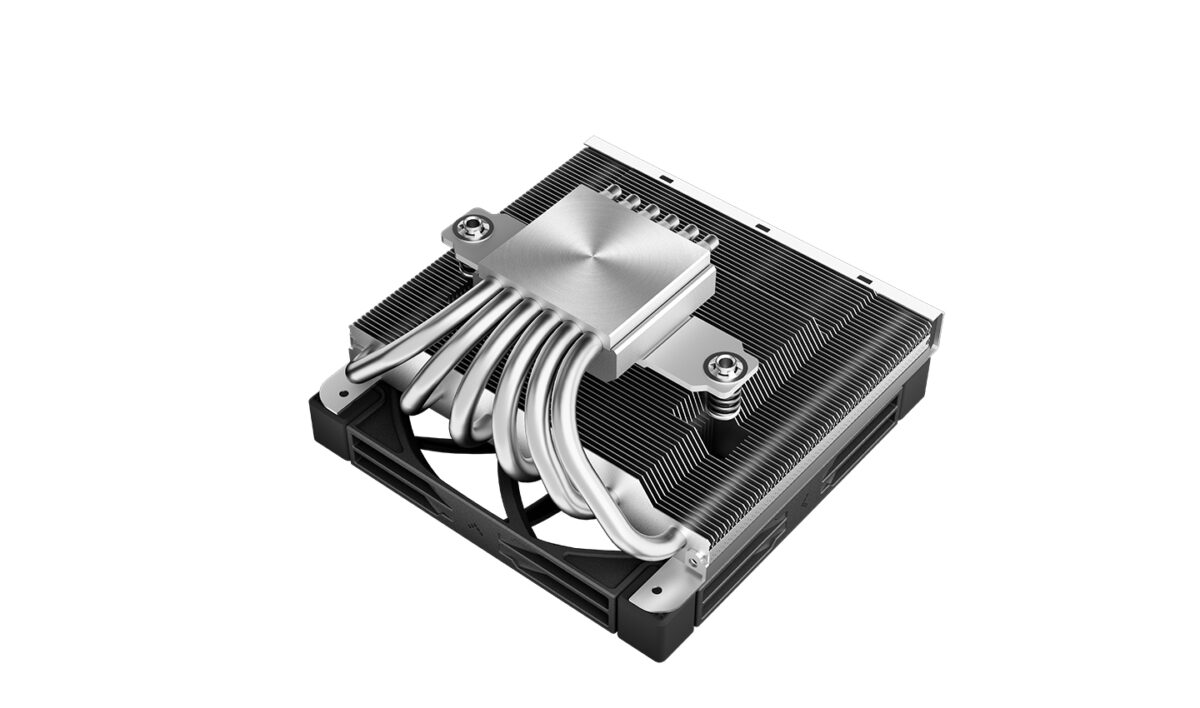

High-End Heatpipe Array – Six Ø6 mm copper heatpipes transfer heat efficiently from the CPU to the fin array, enabling the cooler to manage substantial thermal loads despite its small size.
-
Quiet Yet Powerful Cooling – The slim 120 mm PWM-fan delivers airflow around 61.56 CFM with static pressure of 1.97 mmAq and keeps noise levels at or below 24.4 dB(A), striking a balance between performance and acoustics.
-

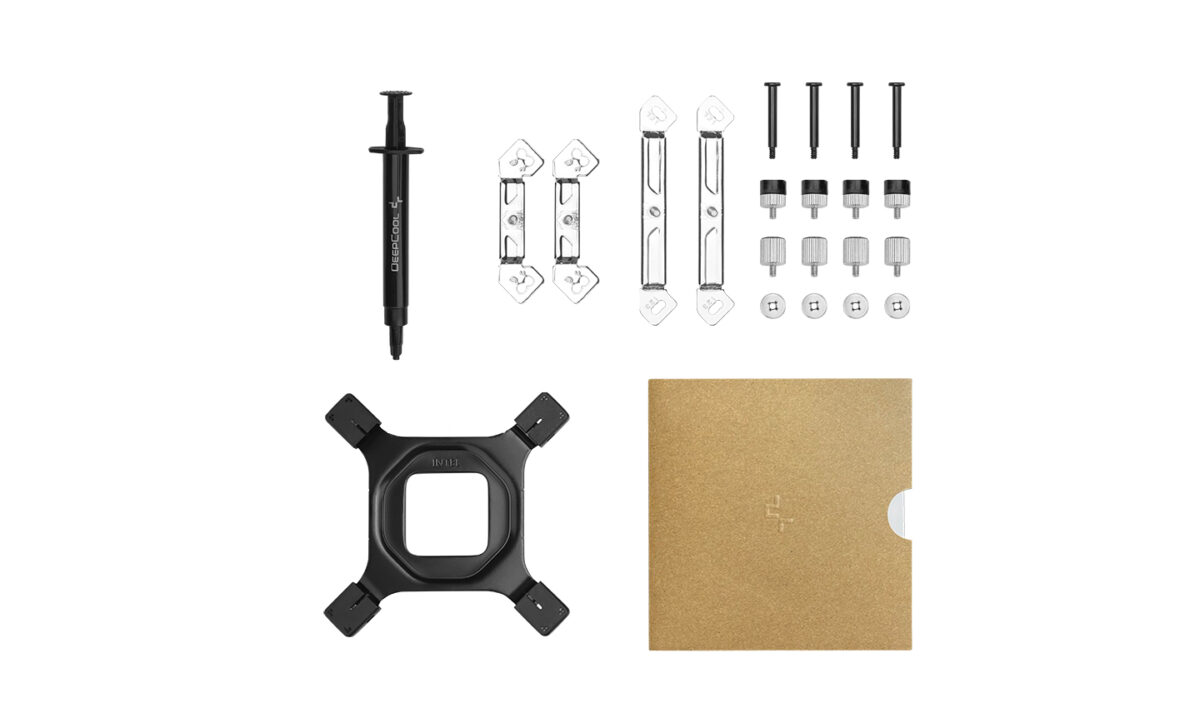

Broad Platform Compatibility and Easy Installation – Supports current Intel and AMD mainstream sockets including LGA1700 and AM5. The cooler comes with a reinforced all-metal backplate for easy and stable mounting.
Description
About Deepcool AN600 Low Profile CPU Cooler
| Specification | Detail |
|---|---|
| Model | AN600 – Top-Flow Low-Profile Cooler |
| Product Dimensions (L×W×H) | 122 × 120 × 67 mm |
| Heatsink Dimensions (L×W×H) | 121 × 120 × 52 mm |
| Net Weight | 628 g |
| Heatpipes | 6 × Ø6 mm copper heat-pipes |
| Fan Dimensions (L×W×H) | 120 × 120 × 15 mm |
| Fan Speed (PWM) | 500 – 1,850 RPM ±10% |
| Fan Airflow | 61.56 CFM |
| Fan Static Air Pressure | 1.97 mmAq |
| Fan Noise Level | ≤ 24.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.7 A |
| Fan Power Consumption | 8.4 W |
| LED Type | White LED |
| CPU Socket Compatibility | Intel: LGA1851/1700/1200/1151/1150/1155; AMD: AM5/AM4 |
